Locate Elements within Sample

Unique distributions of material at the nanoscale can create whole new classes of materials. Understand why EELS allows you to determine the spatial distribution of detected elements with near-atomic resolution in a modern TEM.


EELS is high-resolution technique to better understand the spatial distribution of materials in your sample. This spatial distribution can be determined when you use a parallel beam on the sample to form an image (or series of images) with a narrow band of energies. This filtered imaging mode is known as energy-filtered transmission electron microscopy (EFTEM) and offers several operation modes that span the zero- and low-loss signals through the core-loss signals.

An alternative to acquiring a series of images is to create a spatially distributed collection of spectra or data cube. This method is known as spectral imaging (SI) or sometimes hyperspectral imaging. For EELS data, this spectral image can be constructed using a focused probe, collecting spectra pixel-by-pixel, or with a series of EFTEM images, collecting the cube energy plane-by-energy plane.

EFTEM                                    Spectrum Imaging

EFTEM

EFTEM provides methods of creating or enhancing image contrast to locate or quantify material in the sample. These methods include most probable loss imaging, contrast tuning, pre-carbon imaging, 3-windowjump-ratio (2-window), and chemical state mapping. Image quality with EFTEM is a function of the energy loss, energy-selecting slit width, and collection angle. The table below shows qualitatively the effect of the slit width and collection angle on EFTEM spatial resolution, while the following figure provides a more detailed description based on delocalization and optical aberrations. Even though delocalization and optical aberrations set the ultimate limit of the technique, it is more often the case that resolution is limited by the signal-to-noise ratio (SNR) of the image rather than optical aberrations. Parameters that increase the number of collected electrons have a strong impact on the SNR and thus, on the actual image resolution.

  Resolution improves when
Factors affecting resolution Slit width Angle
Delocalization of inelastic scattering (Physics) \leftrightarrow \uparrow
Chromatic aberration (Cc, width of slit) \downarrow \downarrow
Diffraction limit due to objective aperture \leftrightarrow \uparrow
Spherical aberration due to objective lens (Cs) \leftrightarrow \downarrow
Statistical noise due to small cross-sections \uparrow \uparrow
Signal-to-background \downarrow \downarrow
Radiation damage of the specimen \uparrow \uparrow
Instrumental instabilities (e.g., high voltage, sample) \uparrow \uparrow
How experimental parameters affect spatial resolution. \leftrightarrow Means that the parameter has little or no effect on spatial resolution. Keep in mind that the spatial resolution of a map is often determined by the SNR of the image rather and the resolution of the imaging device.


d^{2}= \left ( \frac{2h\nu \theta _{0}}{\Delta E}\left [ \left ( \theta _{0}^{2}+\theta _{E}^{2} \right )ln\left (1+\frac{\theta _{0}^{2}}{\theta _{E}^{2}}\right ) \right ]^{-\frac{1}{2}} \right )^{2}+\left ( \frac{C_{c}\Delta \theta _{0}}{E_{0}} \right )^{2}+\left ( \frac{0.6\lambda }{\theta _{0}} \right )^{2}

with \theta _{E}=\frac{\Delta E}{2E_{0}} being the characteristic scattering angle

Spatial resolution in EFTEM images and maps
The optical image resolution (d) in EFTEM is governed by three terms: 1) delocalization or impact parameter (brms) effect that improves with higher energy loss as the electrons are scattered into higher angles; 2) chromatic aberration (dc) which is a linear function of the slit width and collection angle; and 3) diffraction (dd) that varies as the inverse of the collection angle.

3-window method for EFTEM mapping

As diagrammed below, two pre-edge images are used to compute background contribution to the post-edge image for each individual pixel in an EFTEM 3-window map. Subtraction of this computed background intensity from the post-edge image yields the core-loss signal.

To determine the net edge signal, simply compute and subtract the edge background using two pre-edge images as diagrammed below. With this method, there is a minimum of two background windows needed. The map intensity is directly proportional to the projected concentration and you can relate it to the absolute concentration if the thickness and elemental cross-sections are known.

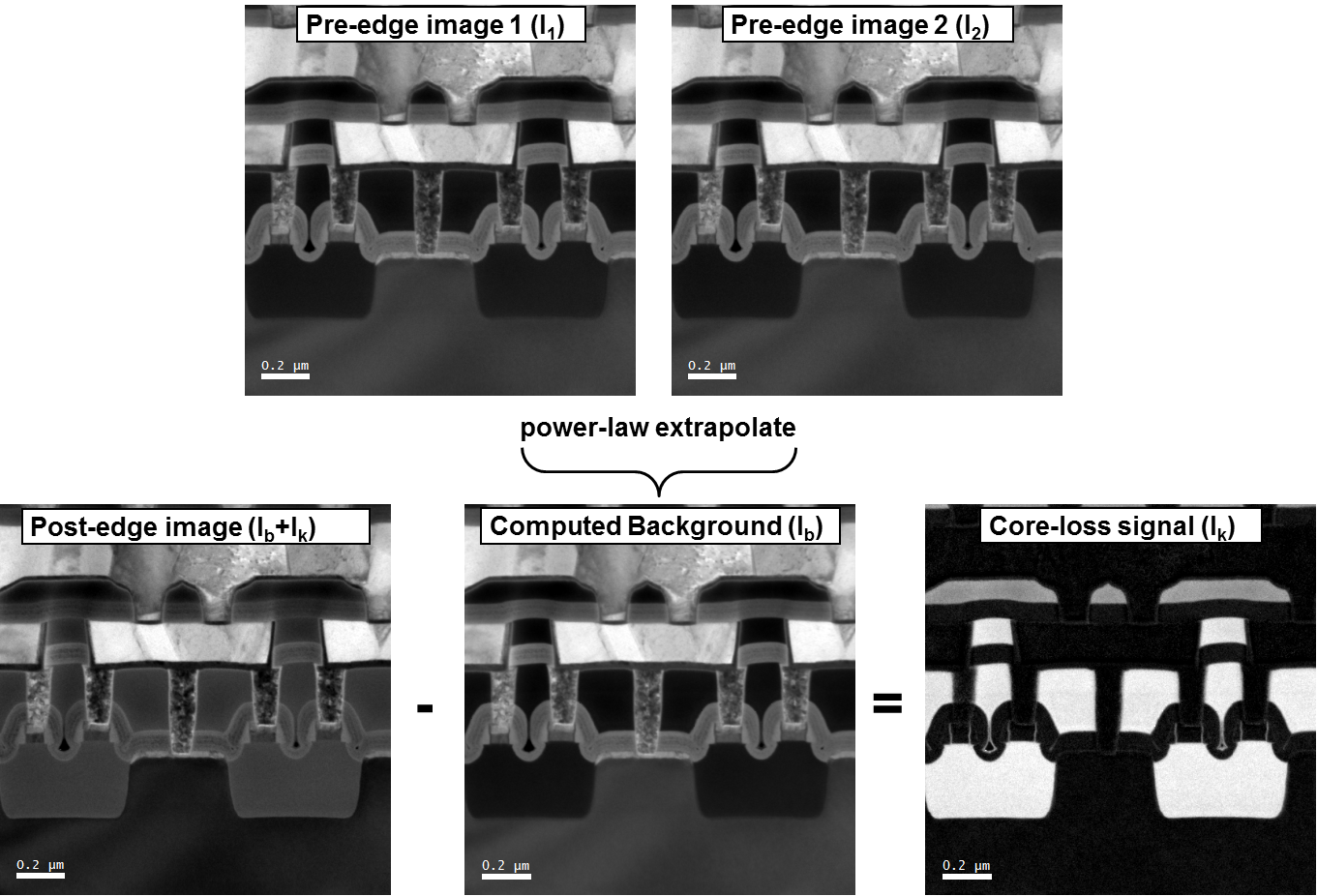

Oxygen mapping in a semiconductor device
Oxygen mapping in a semiconductor device. The two pre-edge images are used to compute the background under the post-edge image.

Jump-ratio imaging

A jump-ratio image is formed by taking one image before (pre-edge) and one image after the edge (post-edge) so you can compute the ratio of the two. This provides a qualitative elemental image that directly relates to mass thickness of the element present. Jump-ratio imaging is useful in case of edge overlap, or difficult backgrounds at low energies. Jump-ratio mapping is particularly useful in cases where there is a small amount of a substance in a relatively uniform matrix (e.g., biological sections and polymer blends). This mapping also reduces diffraction contrast. However, be wary of artifacts when the thickness changes abruptly.

O K-edge
For the jump-ratio map, only two images are needed. One before the edge and one after. Division of the two images creates the jump-ratio map.

Visual representation of elemental mapping vs. jump-ratio imaging

Elemental mapping vs. jump ratio imaging

Chemical mapping

Different chemical states of the same element often have characteristic spectral features that are sensitive to the types of chemical bonds present. Imaging with such features produces chemical maps (as opposed to elemental maps).

Chemical mapping
Unstained polystyrene (with C=C double bonding) particles in a polyethylene matrix. The mapped feature is the small peak at 7 eV between zero-loss peak (ZLP) and plasmon specific to polystyrene. The exposure time was 8 s.

Spectrum imaging

A spectrum image can be considered a data cube where each spatial point on one face of the cube projects down as an energy loss spectrum in the third dimension. Having a data cube has the advantage of allowing a full spectral analysis of each data point to be performed. This gives greater confidence in rejecting artifacts and allows processing decisions to be made and updated after the data has been acquired. The SI data cube can be acquired by scanning a focused probe over the sample in the scanning transmission electron microscope (STEM) to create a STEM SI; or use EFTEM to acquire images over a narrow band of energies to fill the spectrum image slice-by-slice to create an EFTEM SI.

STEM SI

Attain a STEM SI dataset by stepping a focused electron probe from one pixel to the next, while you obtain a spectrum at each pixel. The spectrum image data cube is filled with one spectrum column at a time. STEM allows collecting any combination of signals (e.g., EELS, x-ray, and cathodoluminescence (CL) spectra) simultaneously. Acquiring the STEM image signal simultaneously permits spatial drift correction during acquisition.

STEM SI

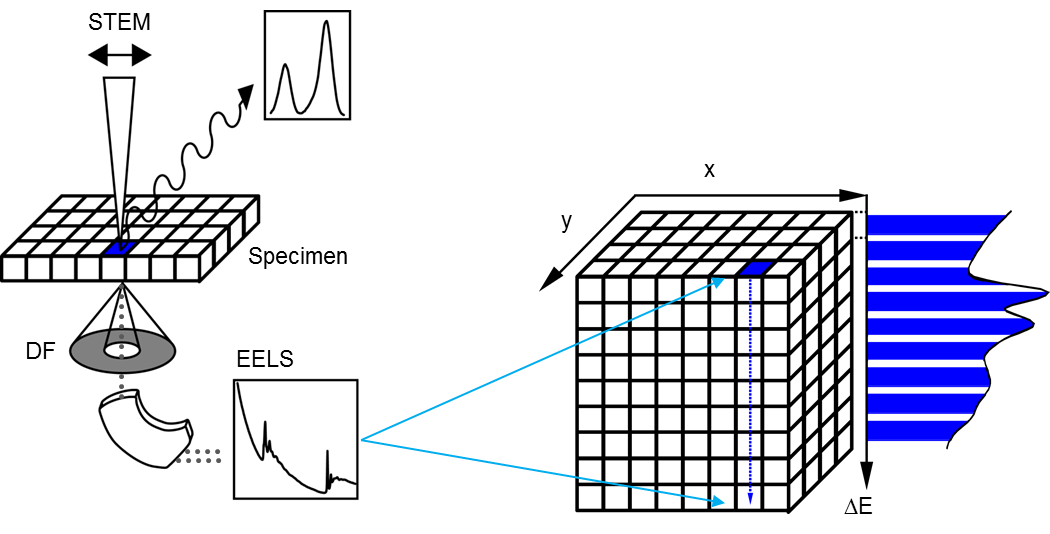

Schematic representation of the STEM SI acquisition process. The data cube is filed pixel-by-pixel but the spectrum is acquired in parallel.

STEM SI

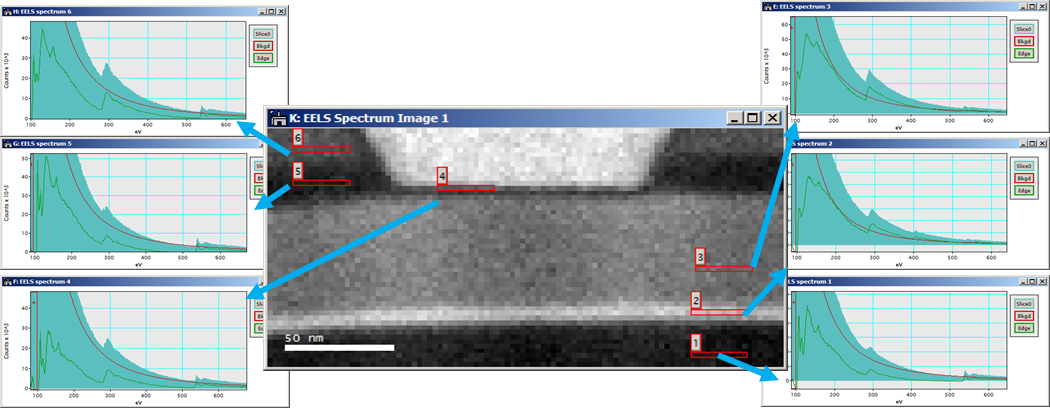

DigitalMicrograph® software allows analysis of the data cube either in image space using the Slice tool or in spectral space using the Spectrum Picker tool.

STEM SI

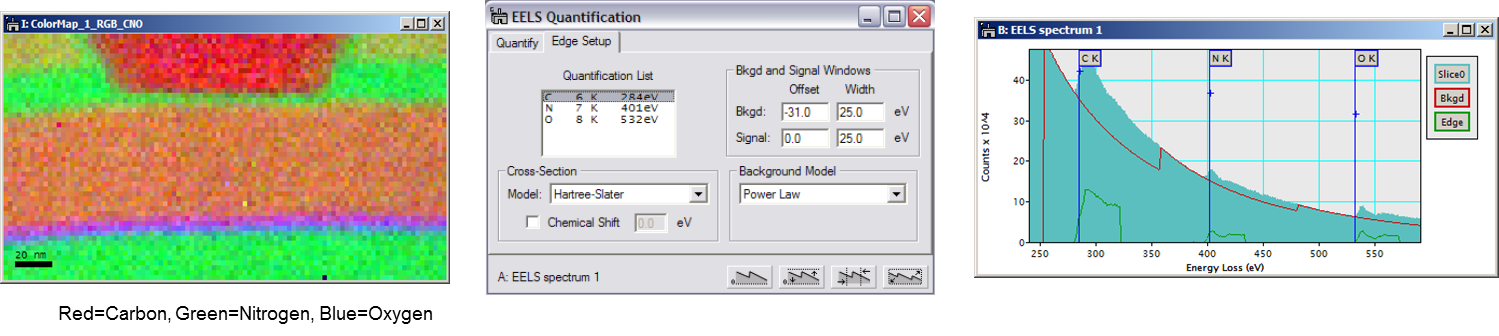

Anything you can calculate from a single spectrum can be done automatically for every spectrum in the spectrum image. Here, EELS quantification is performed on every spectrum to allow quantitative maps to be extracted.

EFTEM SI

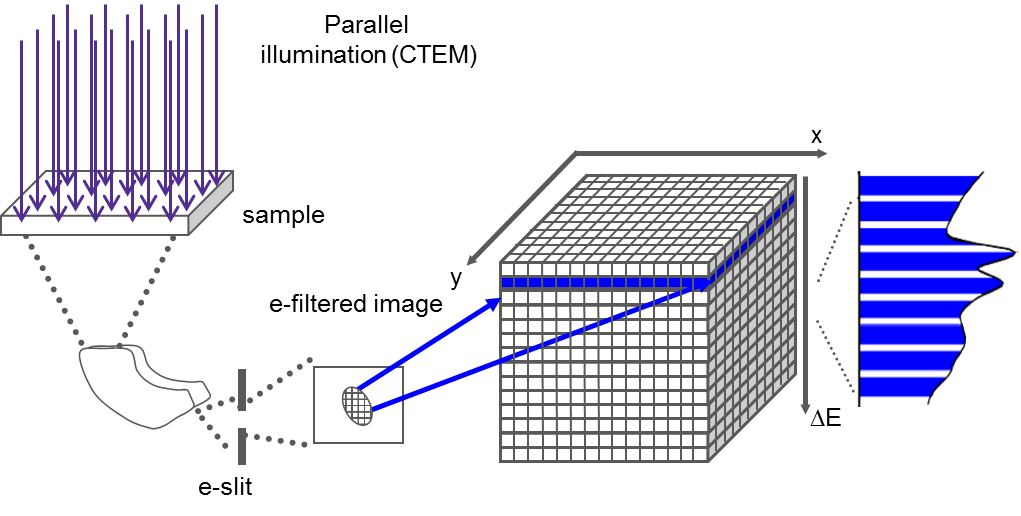

When you utilize EFTEM to acquire a spectrum image (EFTEM SI), the energy filter is set to acquire an image that contains a narrow range of energies. The spectrum image data cube is filled with one energy plane at a time.

EFTEM SI

EFTEM SI examples of typical energy resolution

EFTEM SI

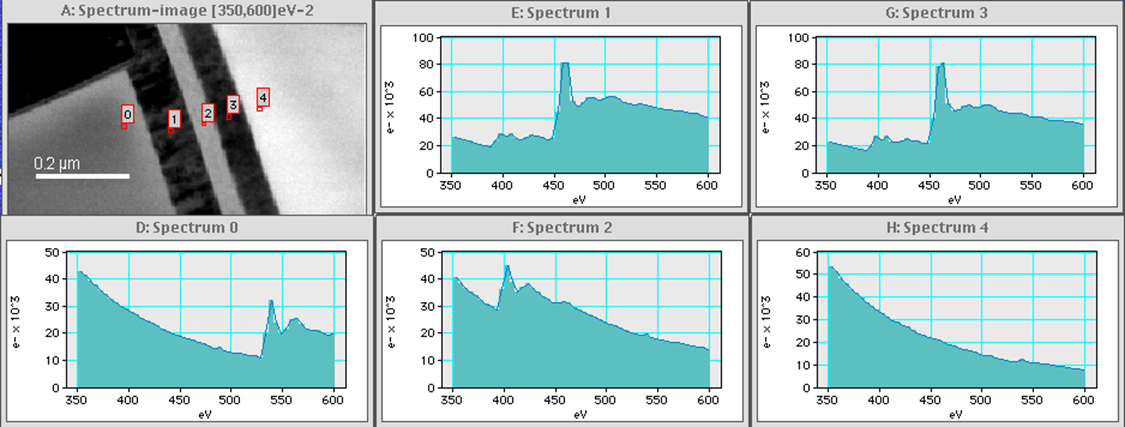

TiN/SiN stack acquired at 120 keV (LaB6); X,Y: 256 x 256 pixels (D = 2.9 nm); E: 50 channels (350 eV, D = 5 eV); acquisition time: ~11 min (10 s/plane); SI viewed as energy slice #1 (350 – 355 eV).

EFTEM SI samples at high (<1 eV) energy resolution

EFTEM SI

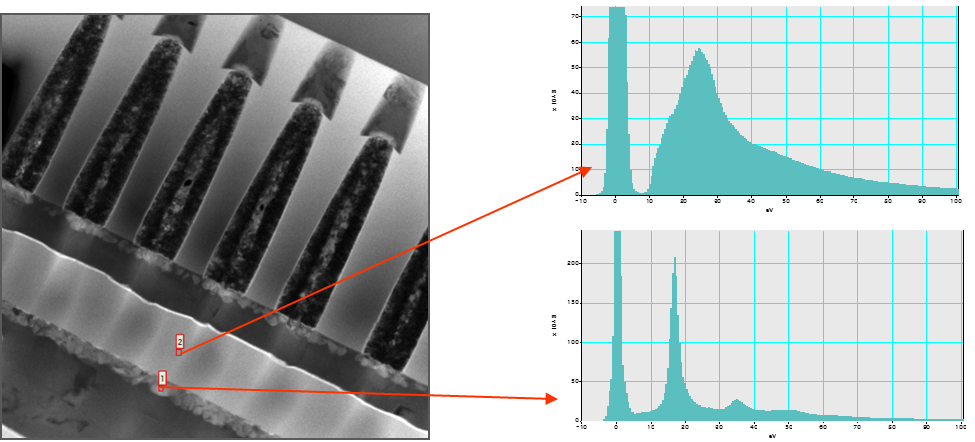

EFTEM SI with Gatan imaging filter (GIF): 1 eV slit, 0.5 eV step, -10 to 100 eV.
